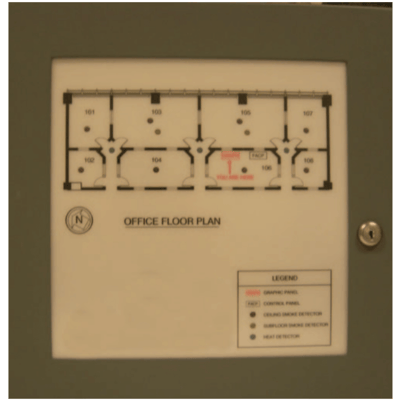

Intelligent Graphic Annunciator
Brand: Fike CorporationFike Intelligent Graphic Annunciators are designed to be used with Fike’s intelligent control panels such as the Cheetah Xi and CyberCat systems.
These annunciators provide a graphic display of the protected area using LED’s to indicate the location of smoke detectors or other intelligent devices.
LED’s can be individually programmed to illuminate for selected individual addresses or zones for certain states such as alarm or trouble.
These annunciator panels combine custom design with rugged construction.
The display window is constructed of plexiglass over lexan and mounted in a steel door.
The backbox is constructed of steel and houses all modules required for a custom designed panel.
There are currently six basic sizes of enclosures available, each capable of being flush or surface mounted. Intelligent graphic annunciators are available in a black enclosure.
The lexan comes in white with black text. Optional background colors are also available.
Features- Internal switch for system reset, silence, graphic lamp test or system acknowledge
- LED’s are completely configurable through C-Linx software
- Custom design to accommodate individual floor plans
- Six basic sizes available in black
- Surface or flush mounting with option trim ring
- Hinged door assembly with keyed lock
- Standard LED colors: Amber, Red, Green, Yellow
- Multi-color background available
- Efficient installation
- Modular circuit board design for expandability
Specifications
Brand
Approvals & Certifications
- CSFM
- FM - 3032718
- UL - S3217
Current
- Alarm: Max.
Humidity
- 93 % RH
Operating Temperature
- 0° to 49° C (32° to 120° F)
Operating Voltages
- Operating Voltage: 15-30 Vdc
