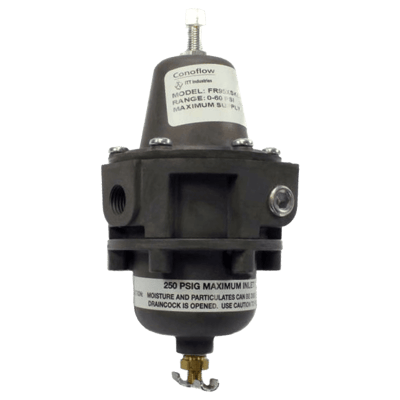

FR95 Series Airpak Filter Regulator
Brand: ITT ConoflowConoflow's FR95 Series Airpak®, Filter-Regulator is used to provide clean, accurate air to instruments, valves, positioners, transducers and other pneumatic control devices.
This units design provides high flow capability, durable materials of construction and bubble tight shut-off
- Pressure Range: psig: 0 to 125 (bar: 0 to 8.3, kPa: 0 to 861)
- Supply Pressure (Maximum): psig: 250 (bar: 17.2, kPa: 1,724)
- Ambient Temperature: -29°C to 66°C (-20°F to 150°F)
- Port Size: ¼"
- Port Thread: NPT
- Material of Construction:
- Body: Aluminum - Black Anodized Coated
- Bowl: Aluminum - Black Anodized Coated
- Diaphragm Assembly: Buna “N” - Nylon Reinforced
- Nozzle Assembly: Brass with Buna “N” Soft Seat
- Nozzle Spring: Stainles Steel
- Filter Plate: Zinc Plated Carbon Steel
- Optional Mounting Bracket: Zinc Plated Steel
Specifications
Brand
Actuator Type
- Handwheel
- Knob Assembly
Ambient Temperature Range
- -29° to 66° C (-20° to 150° F)
Diaphragm Material
- Buna-N
Enclosure, Body Material
- Black Anodized Aluminum
Exhaust Capacity - Relieving Units Only
- Cv=0.03
Filter
- Cellulose (10 microns)
- Polypropylene (35 microns)
- Stainless Steel (40 microns - for Oxygen Service)
- Stainless Steel (40 microns)
Flow Capacity
- 25 scfm (0 to 125 at 200 psi Inlet Pressure)
Flow Rate
- 0.50 Cv
Mounting
- Mounting Bracket (Bonnet)
NPT Connection
- 1/4" NPT Female
Pressure Range
- bar: 0 to 8.6
- kPa: 0 to 861.8
- psig: 0 to 125
Relief
- Non-Relieving
- Relieving
Sensitivity
- psig: 0.1 (bar: 0.007, kPa: 0.7)
Supply Pressure - Maximum
- bar: 17
- kPa: 1,723
- psig: 250
Supply Pressure Effect
- psig: 0.6 (bar: 0.04, kPa: 4) for psig: 25 (bar: 1.7, kPa: 172) Change in Supply Pressure (Evaluated at 2.0 scfm Air Flow)
